I. Product Overview: Professional Network Video Surveillance Decoding Solution

Qtenboard Network Decoder is a high-performance audio and video decoding device specially designed for network video surveillance systems. Developed based on professional decoding chips and the Linux operating system, it features excellent device stability and strong decoding capability.

Among them, H.265 series products support 4K ultra-high-definition decoding output, while H.264 series products support 1080P and lower resolution decoding. It is compatible with multiple network transmission protocols and bitstream transmission methods, providing strong support for core scenarios such as network audio and video decoding output, large-scale video wall decoding, and split-screen output on video walls.

It is widely used in places with high requirements for video decoding, such as security monitoring centers, command and dispatch rooms, and large exhibition halls.

II. Core Product Features: Flexible Expansion, Efficient Adaptation

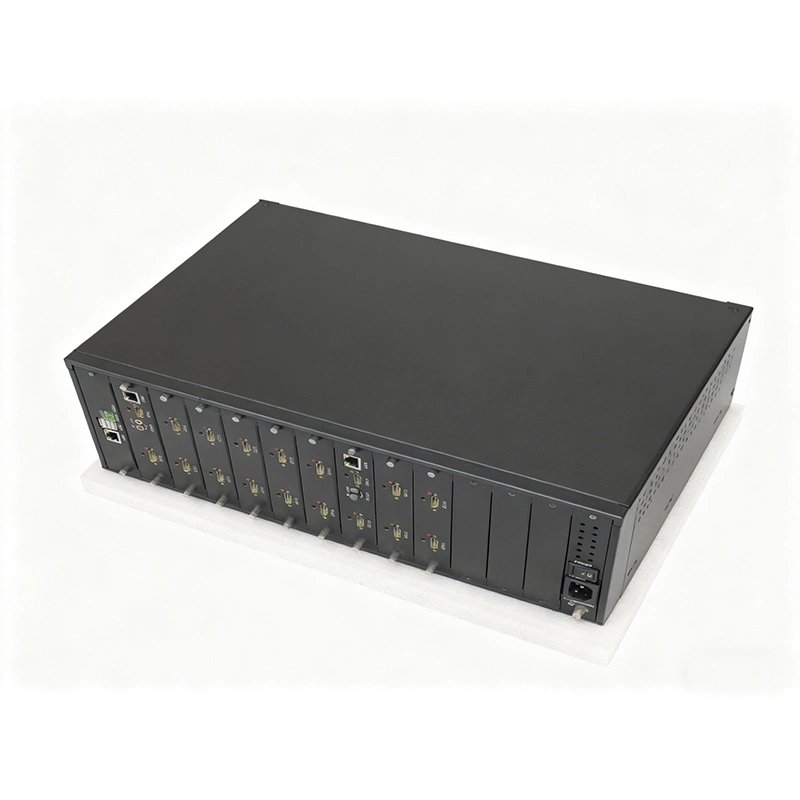

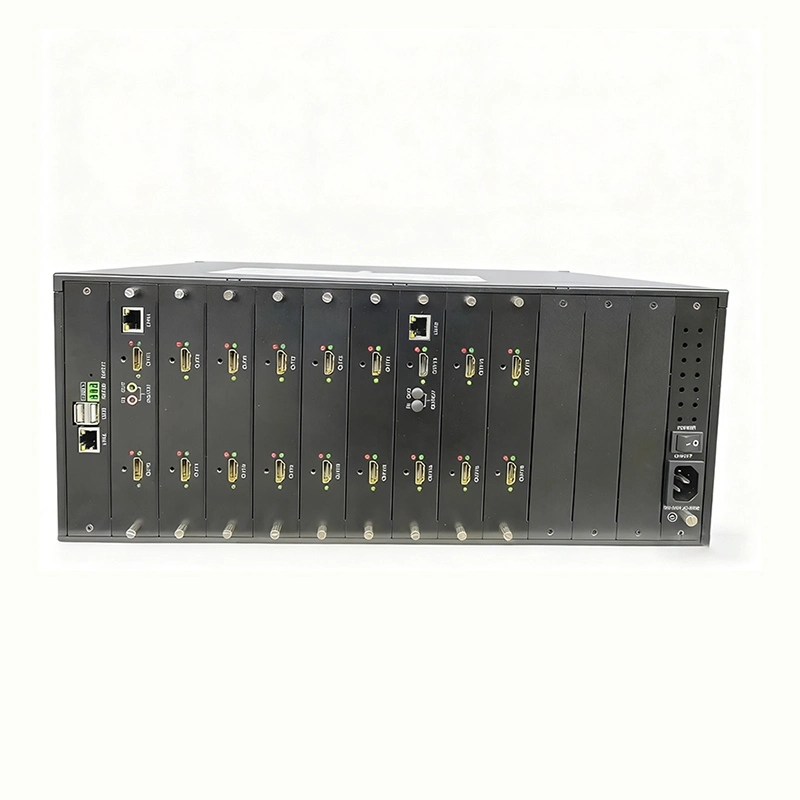

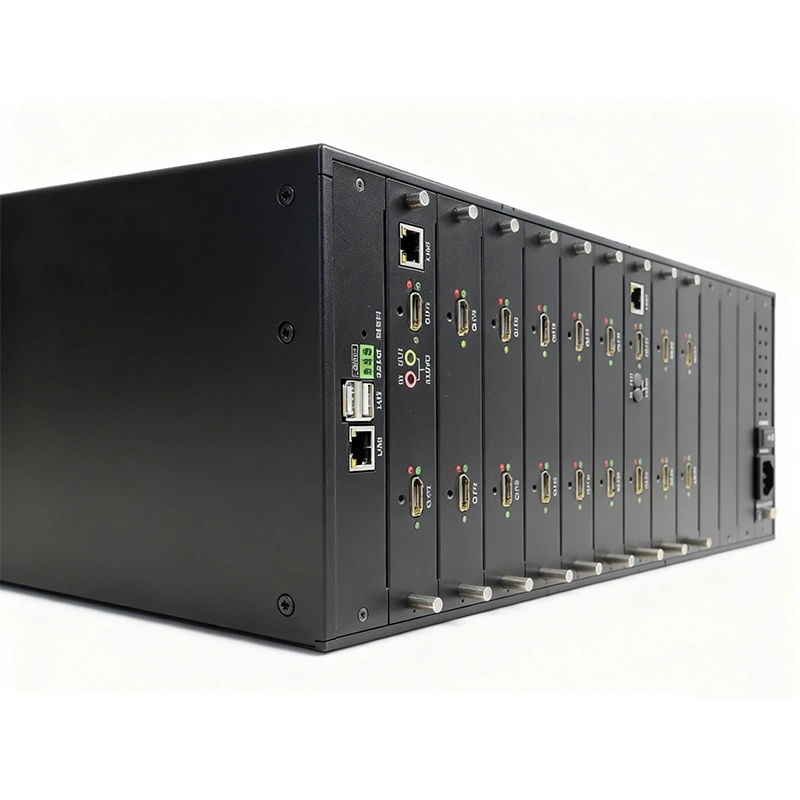

1. Modular Structure Design, Combined on Demand

The device adopts a fully modular design, and multiple functional modules can be flexibly assembled according to actual needs. Each single module is equipped with 1 HDMI 2.0 output interface as standard, and an optional HDMI encoding input module is also available to realize the two-way function of "decoding + encoding", adapting to signal processing needs in different scenarios.

2. Multiple Chassis Specifications to Meet Different Scale Needs

It supports multiple standard rack-mounted chassis sizes including 1U/2U/4U/8U/12U/16U (12U/16U can be customized). The number of assembled modules can be flexibly adjusted according to the chassis specifications, and it also supports multi-machine cascading expansion, easily meeting the needs of different scenarios from small-scale monitoring to large-scale video wall systems:

3. Rich Interfaces, Compatible with Multiple Devices

It is equipped with a standard RS485 interface, which can connect to various analog devices (such as pan-tilts, controllers, etc.); 2 USB interfaces (for function expansion, not supporting matrix control); and a 10/100/1000Mbps adaptive network port to ensure stable transmission of network signals, easily connecting to IP cameras, NVR/DVR and other devices in the monitoring system.

III. Core Functional Parameters: Full-Scenario Decoding, High-Definition Output

1. Core Functions of Single Module in H.265 Series

(1) Decoding Capability: Covering Multiple Resolutions, Adapting to Multiple Formats

• Supported encoding formats: H.265 Main Profile Level 5.1, H.264 Baseline/Main/High Profile Level 5.0, MPEG4 SP L0~L3/ASP L0~L5, MJPEG/JPEG Baseline
• Decoding channels: 1 channel of 4K / 4 channels of 1080P / 8 channels of 720P / 16 channels of D1
• Compatible resolutions: Standard videos such as 4K, 5MP, 3MP, 2MP, 1.3MP
• Supported systems: PAL/NTSC standard formats
• Access protocols: Standard ONVIF protocol, RTSP direct video stream, supporting local playback of video files

(2) Encoding Function (Optional HDMI Input)

• Input support: Supports 1 channel of HDMI 2.0 signal input for encoding, with a maximum support of 1080P input
• Encoding formats: H.264 Baseline/Main/High Profile Level 5.1, MJPEG/JPEG Baseline
• Encoding resolutions: Up to 4K@30fps, 1080P@60fps, resolution and frame rate can be adjusted on demand
• Security guarantee: Supports encryption of video streams after encoding to prevent data leakage

(3) Output Performance: High-Definition and Stable, Supporting Split-Screen

• Output interface: 1 HDMI 2.0 interface, backward compatible with HDMI 1.3 and lower versions
• Maximum output resolution: 3840×2160@60fps (4K ultra-high definition)
• Screen splitting: A single screen supports a maximum of 25-screen split display, meeting the needs of multi-screen monitoring

2. Overall Performance Specifications (H.265 Standard D Series)

IV. Hardware and Environmental Parameters: Stable and Durable, Adapting to Multiple Scenarios

1. Power Supply and Power Consumption

• Input power: AC220V, 50Hz
• Power consumption: 1U/2U chassis < 100W; 4U chassis < 400W; 8U/12U chassis < 600W

2. Environmental Adaptability

• Operating temperature: -10℃~55℃
• Operating humidity: ≤90%RH (no condensation)
• Storage temperature: -20℃~60℃
